WINDOW WALLS
ES-CS1325
TYPE
AllBRAND

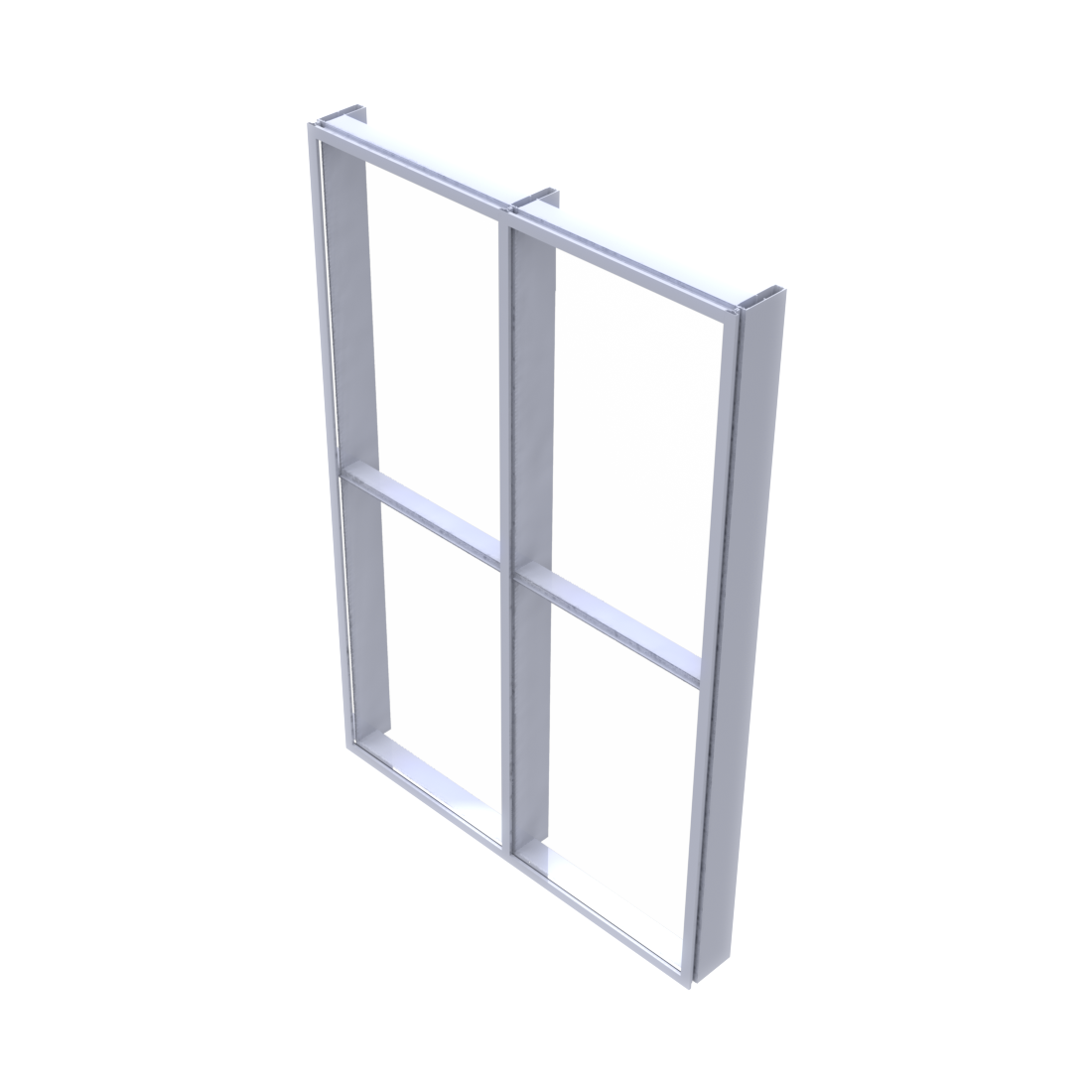

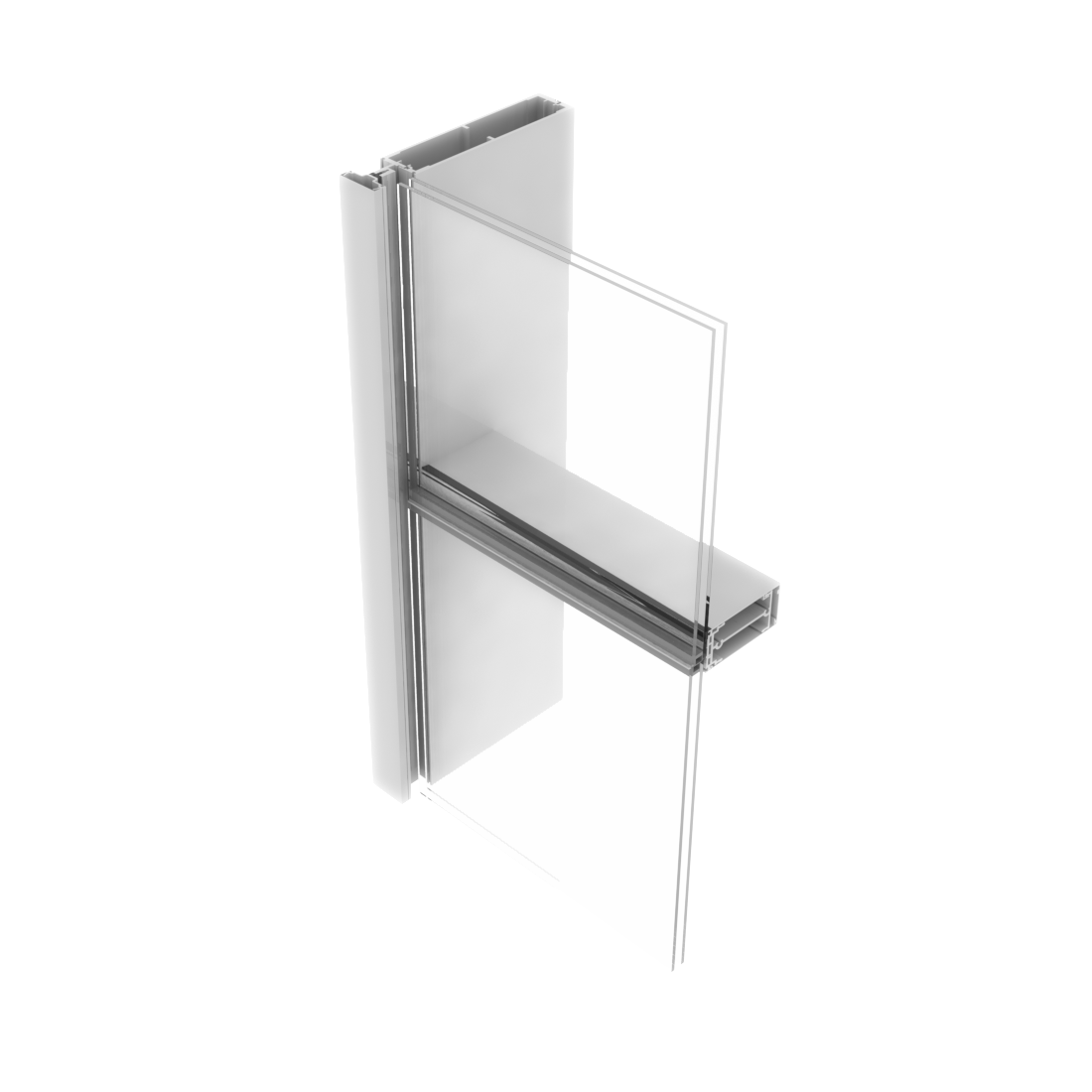

ESW ®The ES-CS1325 is a stick-type, facade system or “stick curtain wall” in which the frames, mullions and glass are installed and interconnected piece by piece on site. The basic design concept allows the system to be considered thermally improved.
Designed for the USA market
FEATURES
Hurricane Resistant
System Description
Frame depth: 13”.
Sightline: 2.5”.
Designed for 1 5/16” insulated laminated glass and 9/16” laminated glass.
Water infiltration: 23.75 psf.
U-value: 0,46 (with ¼” SB60 + ½” Air
¼” Clear + 0,090” + ¼” Low-E).
Features
EPDM isolator gasket.

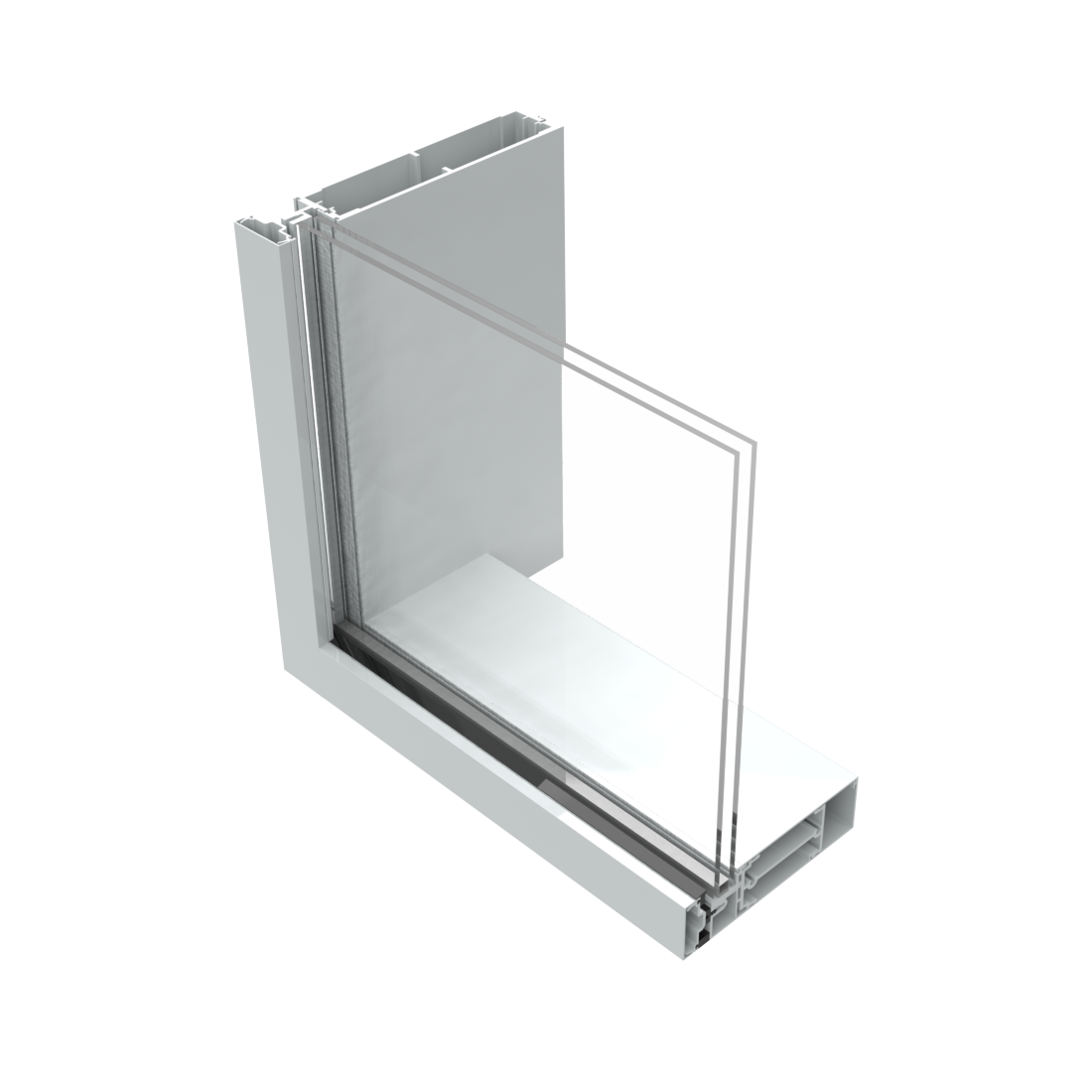

90° outside corner available.
Anodized, painted or wood grain finishes available.
Assembled on site.
Can be combined with other systems, projecting doors and windows.
Outside glazed.
