CURTAIN WALLS
ES-UN625
TYPE
UnitizedBRAND

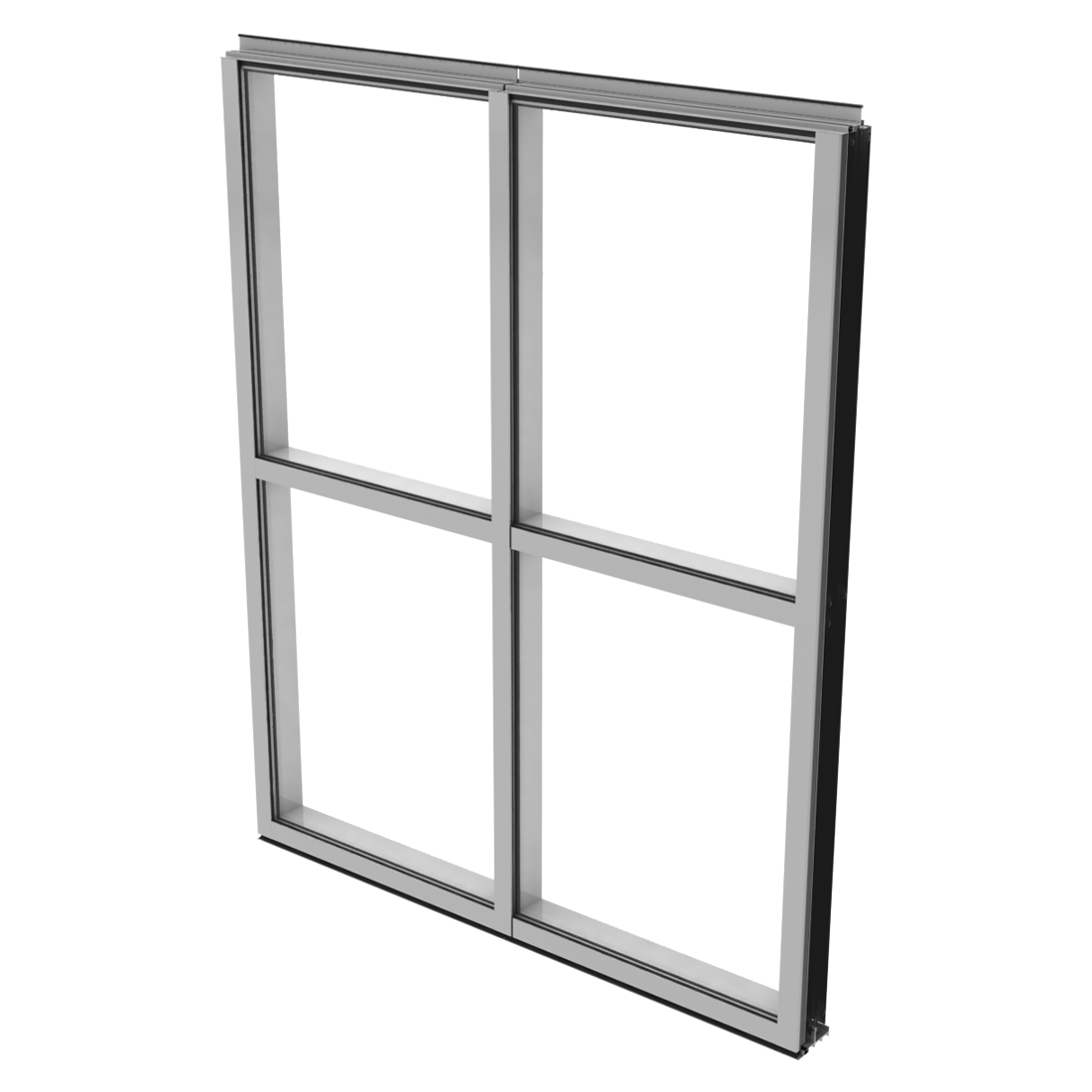

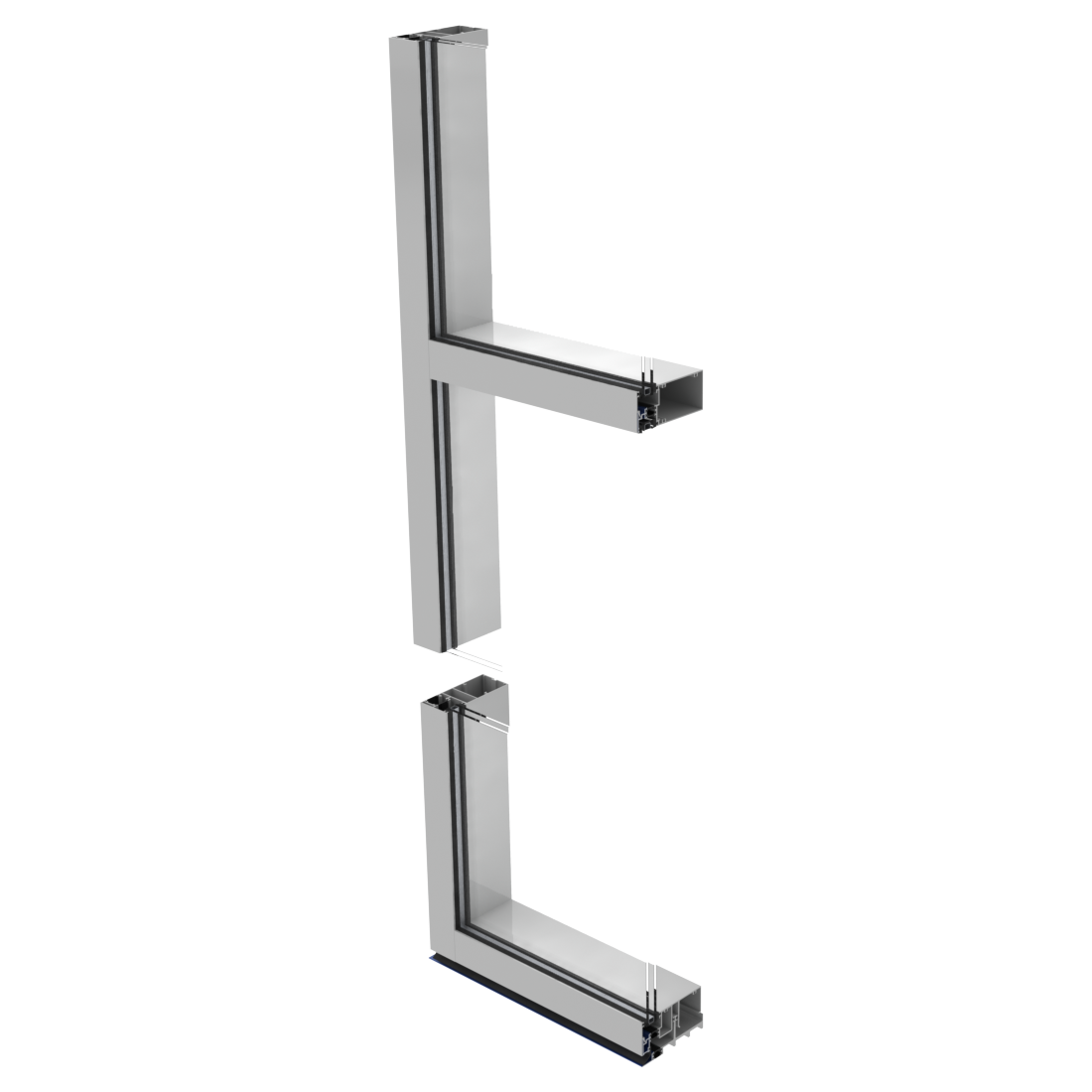

ESW ®The ES-UN625 is a 6” unitized, thermally broken, curtain wall, designed to meet the performance and aesthetic requirements for a wide range of applications. The Insulbar® polyamide struts, beside their excellent thermal performance, allow dual finish design flexibility.
Designed for the USA market
FEATURES
Thermally Broken
System Description
Frame depth: 6”.
Sight line: 2 1/2”.
Designed for 1” insulated glass.
Design load: +55/-55 psf.
Water infiltration: 15 psf.
- U-value: 0,40 (estimated) (with 1/4 SB60 - 1/2 Air - 1/4 Clear).
Features
Pre-assembled and pre-glazed.
Two or four-sided SSG and captured options.
90º inside and outside corners.
Inside re-glaze horizontal optional.
Integrated vents.
Anodized, painted or wood grain finishes available.
